Authentication webhooks

Authentication uses webhooks for two distinct roles. Each role has its own dedicated webhook type — Authentication pre-enter and Authentication validation — that you pick in the wizard when creating the webhook. The Authentication setup dropdowns only list webhooks of the matching type, so you can't accidentally point a dialog-action webhook at an auth slot.

Role	Webhook type	Where you select it in the console	When it fires	What it returns
Pre-enter webhook	auth_pre_enter	On the Verify the user step, the Pre-enter webhook dropdown	Once, when entering the verification step	Context updates to use as ground truth
Validation webhook	auth_validation	On any question, by setting Validate answer via to Webhook	Every time the agent submits a candidate answer for that question	A boolean accept / reject

Pre-enter and validation are independent — you can use either, both, or neither. The most common production setup uses both: a validation webhook gates identification, then a pre-enter webhook fetches CRM data so verification can validate against it.

You can create as many auth_validation and auth_pre_enter webhooks per AI Agent as you need — typically one validation webhook per question, and one pre-enter webhook for the verification step.

Shared webhook plumbing

The HTTPS request shape, signature verification, custom headers, retries, and fail-on-error semantics work exactly like other Moveo webhooks. This page documents the auth-specific request and response bodies. For everything else, see Build a webhook and Webhooks.

Pre-enter webhook contract

Available only on the verification step. The Pre-enter webhook lets you fetch data once — typically from your CRM — so the verification questions can validate against it.

When it fires

Once, on the first turn after the verification step is entered. It does not re-fire on subsequent turns within the same step. If the pre-enter webhook fails (timeout, non-2xx response, malformed body), the auth flow exits with a system failure and routes to the configured failure node — the verification step never starts.

Request

POST with JSON body:

{
  "request_id": "uuid",
  "session_id": "uuid",
  "context": { "/* all current context vars */": "..." }
}

context is the full set of variables collected so far, including any captured during identification (e.g. $ssn, $account_number).

Response

{
  "output": {
    "name": "Maria Papadopoulou",
    "dob": "1980-04-12"
  }
}

Every key/value in output is merged into the conversation context. The returned variables become available as $name, $dob, etc. — and can be referenced as the Ground truth for the verification questions (e.g. "Validate answer via Fuzzy match against $name").

Example

A pre-enter webhook that looks up a CRM record by SSN and returns the matching name and dob. The example below uses Next.js App Router and Zod; the same pattern applies to any HTTP framework.

Node.js / Next.js

app/api/fetch-crm-data/route.ts

import { NextResponse } from 'next/server';
import { z } from 'zod';

const bodySchema = z.object({
  request_id: z.string().optional(),
  session_id: z.string().optional(),
  context: z.object({
    ssn: z.string().min(1, 'context.ssn is required'),
  }),
});

export const POST = async (req: Request): Promise<Response> => {
  const body = bodySchema.parse(await req.json());

  // Look up the CRM record by SSN. Replace with your own data source.
  const row = await lookupCrmRow(body.context.ssn);

  return NextResponse.json({ output: row });
  // row shape: { name: string, dob: string } | null
};

Python (FastAPI)

fetch_crm_data.py

from fastapi import FastAPI
from pydantic import BaseModel

app = FastAPI()

class Context(BaseModel):
    ssn: str

class Body(BaseModel):
    request_id: str | None = None
    session_id: str | None = None
    context: Context

@app.post("/api/fetch-crm-data")
async def fetch_crm_data(body: Body) -> dict:
    row = lookup_crm_row(body.context.ssn)  # -> {"name": str, "dob": str} | None
    return {"output": row}

If the SSN doesn't resolve to a CRM record, return { "output": null } (or omit the ground-truth keys). The verification step will then fail every question that depends on them.

Validation webhook contract

Available per question when you set Validate answer via to Webhook. Use it when the right-answer check can't be expressed as a string operator against a context variable.

When it fires

Every time the agent submits a candidate answer for the question. The same webhook may be called multiple times in one step (if the user gives a wrong answer and tries again, that's a new call) and across both steps if you configure validation webhooks on both.

Request

POST with JSON body:

{
  "request_id": "uuid",
  "session_id": "uuid",
  "value": "123-45-6789",
  "context": { "/* all current context vars */": "..." }
}

• value is the candidate answer extracted by the agent — already normalized to the question's type (e.g. for a date question, an ISO-formatted string).
• context is the full set of variables collected so far. Use this if the validation depends on more than just the candidate value (e.g. validating an OTP against a previously sent one stored in $otp_token).

Response

{ "valid": true }

…or { "valid": false }. There is no third state; missing or malformed valid is treated as a system error.

The Authentication Agent learns only the boolean. It does not learn why an answer was rejected. This is intentional — see What the Authentication Agent can see.

Example

A validation webhook that checks whether the SSN the user provided exists in a Google Sheet.

Node.js / Next.js

app/api/identify-ssn/route.ts

import { NextResponse } from 'next/server';
import { z } from 'zod';

const bodySchema = z.object({
  value: z.string().min(1, 'value is required'),
  request_id: z.string().optional(),
  session_id: z.string().optional(),
  context: z.record(z.string(), z.unknown()).optional(),
});

export const POST = async (req: Request): Promise<Response> => {
  const { value } = bodySchema.parse(await req.json());

  // Replace with your own check against your source of truth.
  const valid = await ssnExists(value);

  return NextResponse.json({ valid });
};

Python (FastAPI)

identify_ssn.py

from fastapi import FastAPI
from pydantic import BaseModel

app = FastAPI()

class Body(BaseModel):
    value: str
    request_id: str | None = None
    session_id: str | None = None
    context: dict | None = None

@app.post("/api/identify-ssn")
async def identify_ssn(body: Body) -> dict:
    valid = ssn_exists(body.value)  # -> bool
    return {"valid": valid}

Signature verification

Authentication webhooks use the same HMAC-SHA256 signature scheme as every other Moveo webhook. The signature is in the X-Moveo-Signature header; the secret is the verification token you configured on the webhook in the UI.

See Build a webhook → Verify the signature for the full pattern with Node.js and Python examples.

The examples on this page skip signature verification

The minimal examples on this page omit signature verification for brevity. Production webhooks must always verify the signature to confirm the request actually came from Moveo and wasn't tampered with.

Creating an authentication webhook

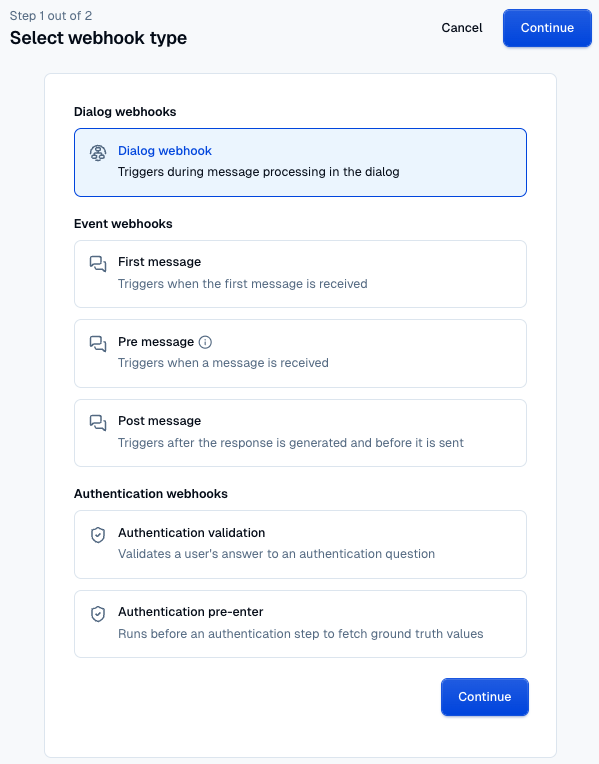

Open the AI Agent → Workflows → Webhooks → + Create webhook. The type selector groups webhooks into three categories — pick from the Authentication webhooks group:

• Authentication validation — validates a user's answer to an authentication question.
• Authentication pre-enter — runs before an authentication step to fetch ground truth values.

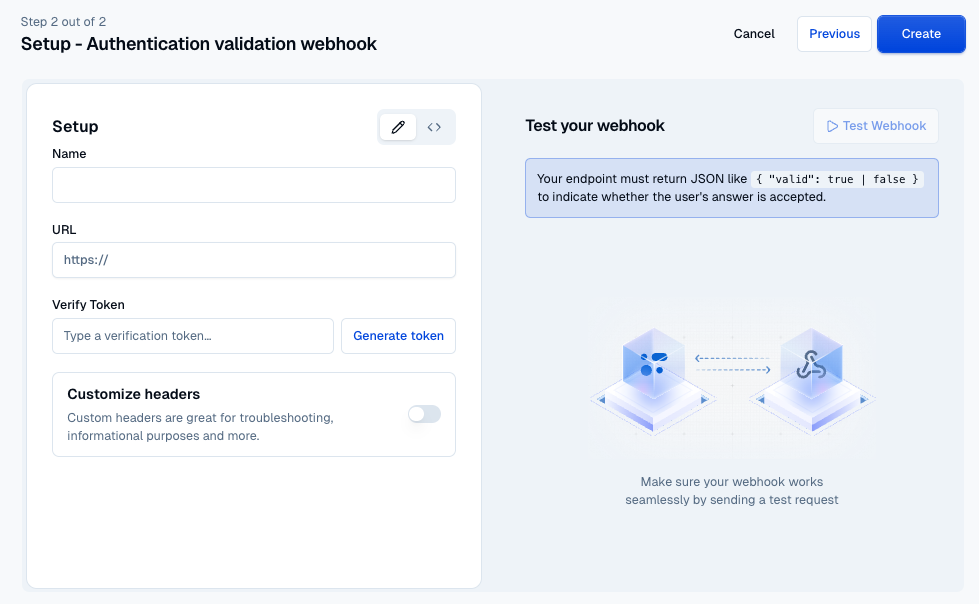

Then fill in the standard webhook form (name, URL, verification token, optional custom headers — see Webhooks). The wizard's Test panel shows the expected response shape for the type you picked, so you can build your endpoint against the right contract from the start.

Selecting a webhook in the console

Once you've created the webhook, it becomes selectable on the Authentication page in exactly one place, determined by its type:

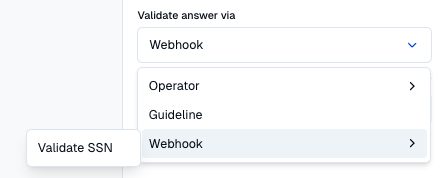

• Validation webhooks (auth_validation) — appear on each question, when Validate answer via is set to Webhook.
• Pre-enter webhooks (auth_pre_enter) — appear in the Pre-enter webhook dropdown on the Verify the user step.

The dropdowns are strictly filtered: only webhooks of the matching type are listed. Dialog-action webhooks and event webhooks (first/pre/post message) are never offered for auth slots.

Deploying your webhook

Both webhooks just need a public HTTPS endpoint. The platform you deploy on is up to you — Vercel, Cloudflare Workers, AWS Lambda behind API Gateway, or your own infrastructure all work. The only constraint is that the endpoint must be reachable from Moveo's servers and respond within the webhook timeout.

A typical workflow:

1. Implement and deploy the endpoint.
2. In the webhook wizard, pick Authentication validation or Authentication pre-enter under the Authentication webhooks group, then fill in URL, verification token, and any custom headers — see Webhooks.
3. Select it on the Authentication page: on a question for a validation webhook, or on the verification step's Pre-enter webhook dropdown for a pre-enter webhook. Each dropdown is filtered to its matching type.
4. Test end-to-end in the Try It panel.

Type reference

Copy-paste-ready TypeScript types.

auth-webhooks.types.ts

// Pre-enter webhook
export type AuthPreEnterRequest = {
  request_id: string;
  session_id: string;
  context: Record<string, unknown>;
};

export type AuthPreEnterResponse = {
  output: Record<string, unknown> | null;
};

// Validation webhook
export type AuthValidationRequest = {
  request_id: string;
  session_id: string;
  value: string;
  context: Record<string, unknown>;
};

export type AuthValidationResponse = {
  valid: boolean;
};

Putting it together: a CRM-backed two-step setup

The canonical real-world setup. Use this when your identifying credential (an SSN, a passport number) lives in a CRM and the rest of the user's record needs to come from the same source.

On the AI Agent's Webhooks page, configure two webhooks:

Webhook	Type	Role	Returns
Identify SSN	auth_validation	Validation webhook for the identification question	{ "valid": true } or { "valid": false }
Fetch CRM data	auth_pre_enter	Pre-enter webhook for the verification step	{ "output": { "name": "...", "dob": "..." } }

On the Authentication page, configure both steps:

• Identify the user — enabled.

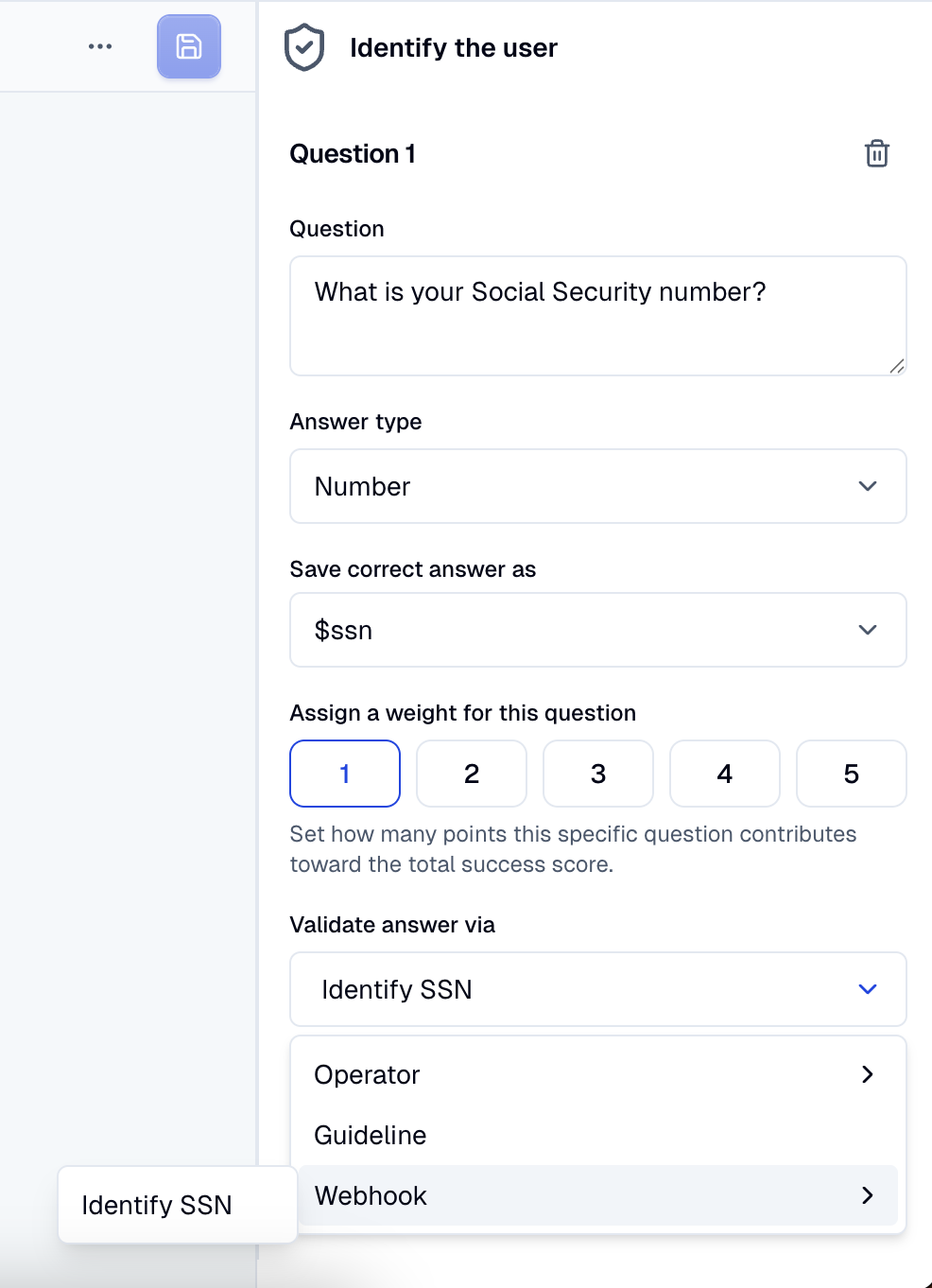

  • One question: "What is your Social Security number?" (Number, weighted 1, saved as ssn).
  • Validate answer via → Webhook → Identify SSN.
  • Score threshold on Successful identification: 1.
  • The Guidelines drawer carries the persona and compliance disclaimer the Authentication Agent will deliver on its first turn (the Authentication Agent owns the first turn — see Guidelines → Scripted greeting). The drawer also tells the user explicitly that they can ask to speak to a human at any time.
  • On Failed identification, enable Guideline-based with the exit condition "The user asks to speak to a human." — that catches the affordance you just promised.
  • Enable Incorrect responses (max 2) and Authentication timeout (5 minutes) as belt-and-braces.

• Verify the user — enabled.

  • Pre-enter webhook → Fetch CRM data.
  • Two questions:
    • "What is your full legal name?" — Text, Validate answer via Fuzzy match against $name, threshold 95.
    • "What is your date of birth?" — Date, Validate answer via Exact match against $dob.
  • Score threshold on Successful verification: 2 (both required).

• Trigger node on success → a verified-customer dialog that picks up $name in its greeting.

• Trigger node on failure → a handover dialog.

What happens at runtime

1. The conversation starts. The Authentication Agent delivers the scripted greeting from the identification guideline and asks for the SSN.
2. The user answers. The agent submits the SSN to the Identify SSN webhook. The webhook returns { "valid": true } if the SSN exists in the CRM, otherwise { "valid": false }.
3. Once identification passes, the Fetch CRM data pre-enter webhook fires. It looks up the user record and returns { "output": { "name": "...", "dob": "..." } }. Those become available as $name and $dob.
4. Verification asks for the user's full legal name and date of birth, validating each against the freshly-loaded ground truth.
5. Both accepted → the success node fires, and the next dialog can greet the user by $name.
6. At any point during identification, if the user says "speak to a human" (or similar), the failure guideline fires and the conversation routes immediately to the handover dialog — no need to burn through attempts.

Both webhooks can be backed by anything that exposes the data — a CRM API, a Google Sheet with name, ssn, dob columns, an internal microservice. The contract the brain cares about is just the JSON shapes documented above.

Where to next

• Build a webhook — generic signature verification, body validation, type reference.
• Webhooks — configuring URL, verification token, and custom headers on the AI Agent.
